The purpose of this lab
is to investigate voltage regulation techniques for generating
constant voltages and power supplies.
Full-wave rectifier with a 12 V transformer.
Analyze the discrete component regulator.
Analyze the regulator with short circuit.
The source of unregulated
voltage in a power supply is usually a half-or full-wave rectified
sine wave from a transformer. For this lab we will use a full-wave
bridge rectifier, as shown below. Construct the rectifier using
1N4007 rectifier diodes and a 100 uF filter capacitor (be
sure to observe the polarity of the capacitor). Do not short
out the transformer secondary.
Measure the output voltage with no load resistance using
the oscilloscope and the DMM.
Measure the peak-to-peak ripple first with and then without a load resistor of 1
kilo ohm. (Use your scope in AC
coupling mode to do this.) What is the observed ripple frequency?
For the rest of the experiment, put the unregulated
voltage on one of your breadboard busses. Remove the load. You
will put the load on the regulated voltage later.
Discrete Component Regulators.

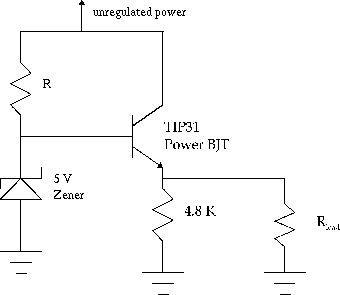

An emitter follower circuit
can be used to buffer the output of a simple zener voltage regulator,
as shown below. We will use a power transistor for the emitter
follower, the TIP31, because of the power demands that we will
place on the circuit. Choose R such that a minimum of 12 mA
of current will flow through the zener diode.
What is the expected output
voltage of the regulator? Construct and test the circuit, using
the unregulated output of your rectifier as the supply voltage
for the circuit, and with Rload = 1 kilo ohm, as before.
Measure and note the various voltages on your schematic. Then
do the following:

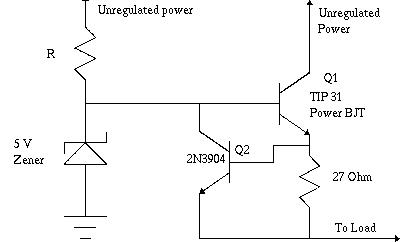

Short Circuit Protection
The regulator can be protected against a short circuit on its output by adding another transistor, as shown below. If the output current exceeds a certain value, Q2 is turned on and `robs' Q1 of its base current. Build this circuit.
Integrated Circuit Regulators.
The circuit that you have
just tested is the basic technique employed in the LM105 integrated

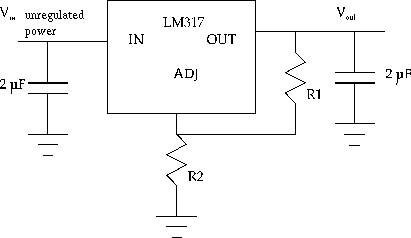

circuit adjustable voltage regulator. Another IC regulator which
is somewhat easier to use is the LM317. It is a three-terminal
package in which the output is regulated to be 1.25 volts greater
than the `adjust' input, which is a high impedance input. For
this regulator, Vout = 1.25 (1 + R2 / R1).
Use 240 ohms for R1 as suggested in the spec sheet.
Design a 5 volt regulator
and build and test the circuit, using the unregulated output from
your rectifier as the input to the regulator. Measure the load
regulation and ripple rejection.
