EE 333

Homework Assignment 2
Due Sept. 5, 1997

  1. Two charges are located as shown below.

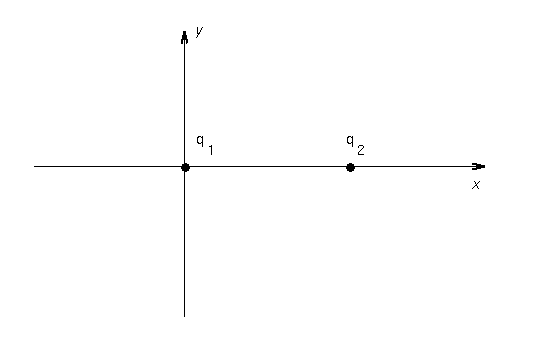

    q1 = 1 x 10-6C and q2 = 3 x 10-6C. q2 is located 12 cm from q1.

    1. Sketch the electric field around the charges.
    2. Is there any place where the electric field is equal to zero? If so, where?
    3. Plot Ex vs. x for x = -1 m to +1 m along the x axis. (Using MATLAB will make this easier.)
  2. Calculate E at the point P in the figure below.

  3. Problem 1.1 from the text.
  4. Problem 1.2 from the text. Use MATLAB to make the plots.
  5. Problem 1.4 from the text.
  6. Problem 1.5 from the text.
  7. Problem 1.8 from the text.
