In this homework we will calculate and use PSpice to simulate the noise measured in the lab.

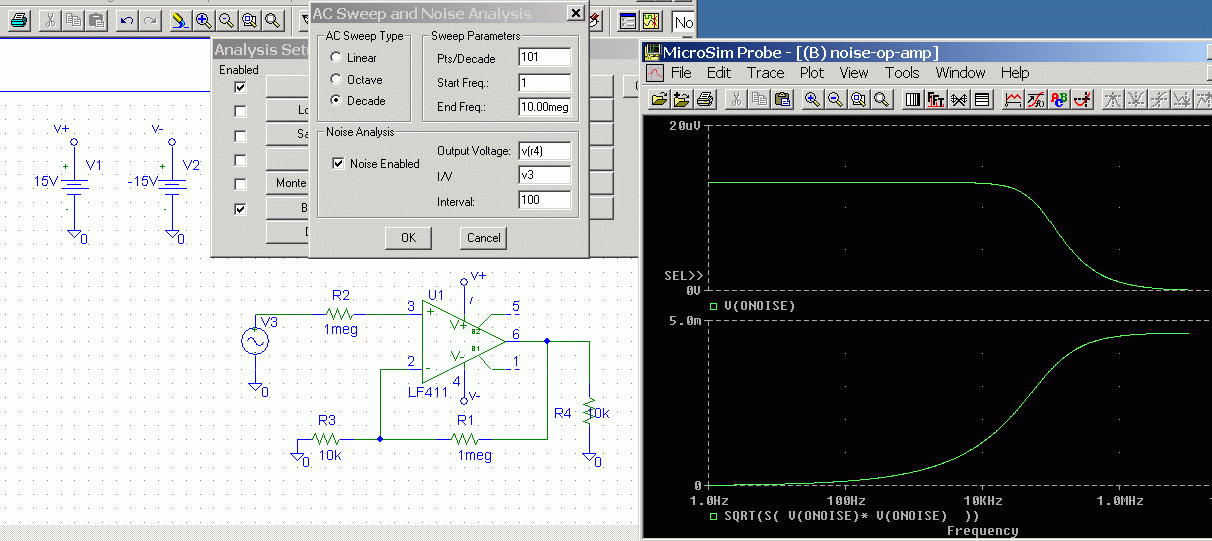

The noise output V(onoise) needs to be integrated over the spectrum. In probe S means integration. The RMS noise is the integrated value at the high frequencies. In the figure use the cursor to find the RMS noise voltage to be 4.6 mV.

Use PSpice to simulate all the lab measurements except the last one with the zener. Assume that peak-to-peak noise will be 8X the RMS value.

Use the theory in Horowitz and Hill and in "Op-amps for everyone" to calculate the expected measurements.
