% m-file name: example1.m
% description: performs complex number calculations and plots
% for class example
A = -1 + j*2;
fprintf('Re{A} = %f, Im{A} = %f, |A| = %f, /_A = %f deg \n', ...
real(A), imag(A), abs(A), angle(A)*180/pi);
B = 2*exp(pi*j/3);
fprintf('Re{B} = %f, Im{B} = %f, |B| = %f, /_B = %f deg \n', ...
real(B), imag(B), abs(B), angle(B)*180/pi);
A + B
B - A
C = A*B
D = B/A
plot(real(A),imag(A),'ro')
hold
plot(real(B),imag(B),'gx')
plot(real(C),imag(C),'b*')
plot(real(D),imag(D),'c+')
hold
gtext('A')
gtext('B')
gtext('C')
gtext('D')
xlabel('Re')
ylabel('Im')
title('Plot of Complex Numbers in Complex Plane');
After changing Matlab's Current Directory to where m-file is saved:
>> example1
Re{A} = -1.000000, Im{A} = 2.000000, |A| = 2.236068, /_A = 116.565051 deg
Re{B} = 1.000000, Im{B} = 1.732051, |B| = 2.000000, /_B = 60.000000 deg
ans =
0.0000 + 3.7321i
ans =
2.0000 - 0.2679i
C =
-4.4641 + 0.2679i
D =
0.4928 - 0.7464i
Current plot held
Current plot released

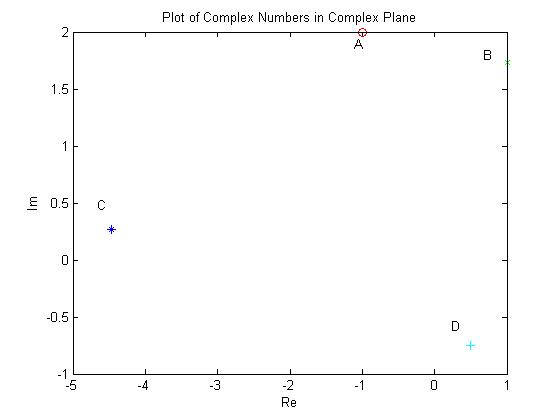

Figure/Plot Generated (Note had to click on figure four times for gtext):
