This example shows how MATLAB commands can be used to reduce the block diagram of a dc motor and then simulate its response for a 12V step input.
Matlab m-file example1.m:% % Filename: example1.m % % Description: This m-file demonstrates how matlab can be % used to reduce the block diagram of a DC motor % with gearing and then simulate the motors % response to a 12V step input. clear; clf; % Motor parameters: Jm = 0.01; bm = 0.3; Km = 0.8; Kb = 0.8; R = 1.4; L = 0.004; % Gear paramters: N1 = 10; N2 = 61; % Load parameters: Jl = 11; bl = 27; % Equivalent load seen by motor: Jt = Jm + (N1/N2)^2*Jl; bt = bm + (N1/N2)^2*bl; % Determine Motor Transfer Function Omegal(s)/V_a(s): nume = [1]; dene = [L R]; disp('Ia(s)/(Va(s)-Vb(s)) = '); printsys(nume,dene,'s'); numm = [Km]; denm = [Jt bt]; disp('Omega(s)/Ia(s) = '); printsys(numm,denm,'s'); numg = [N1]; deng = [N2]; disp('Omegal(s)/Omegam(s) = '); printsys(numg,deng,'s'); numf = [Kb]; denf = [1]; disp('Vb(s)/Omegam(s) = '); printsys(numf,denf,'s'); [numser,denser] = series(nume,dene,numm,denm); [numfdbk,denfdbk] = feedback(numser,denser,numf,denf,-1); [numdtf,dendtf] = series(numfdbk,denfdbk,numg,deng); disp('Omegal(s)/Va(s) = '); printsys(numdtf,dendtf,'s'); % Determine and plot poles and zeros of speed system: subplot(2,2,1); pzmap(numdtf,dendtf); disp('zeros = '); roots(numdtf) disp('poles = '); roots(dendtf) % Plot speed response of system to a 12V step input: t = 0:0.01:4; omegal = 12*step(numdtf, dendtf, t); subplot(2,2,2); plot(t,omegal); xlabel('tResults shown in Matlab window:'); ylabel('load speed '); title('Geared DC Motor Step Response'); % Determine Motor Transfer Function Thetal(s)/V_a(s): [numtf,dentf] = series(numdtf,dendtf,[1],[1 0]); % Determine and plot poles and zeros of position system: subplot(2,2,3); pzmap(numtf,dentf); disp('zeros = '); roots(numtf) disp('poles = '); roots(dentf) % Plot position response of system to a 12V step input: thetal = 12*step(numtf, dentf, t); subplot(2,2,4); plot(t,thetal); xlabel('t '); ylabel('load position '); title('Geared DC Motor Step Response');

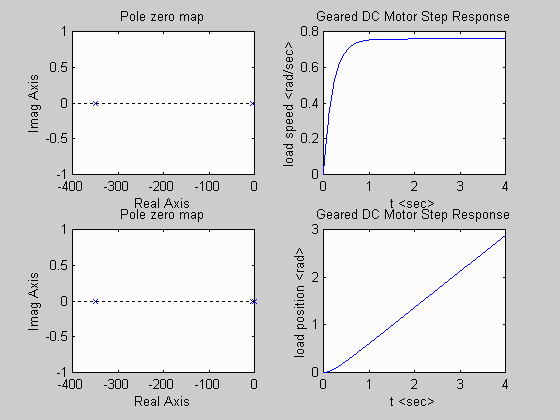

Ia(s)/(Va(s)-Vb(s)) = num/den = 1 ------------- 0.004 s + 1.4 Omega(s)/Ia(s) = num/den = 0.8 ------------------ 0.30562 s + 1.0256 Omegal(s)/Omegam(s) = num/den = 10 -- 61 Vb(s)/Omegam(s) = num/den = 0.8 --- 1 Omegal(s)/Va(s) = num/den = 8 ----------------------------------- 0.074571 s^2 + 26.3502 s + 126.6272 zeros = ans = Empty matrix: 0-by-1 poles = ans = -348.4831 -4.8728 zeros = ans = Empty matrix: 0-by-1 poles = ans = 0 -348.4831 -4.8728MATLAB Plot Generated:
